1. General description
The 74HCT04 is a hex inverter. The inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
2. Features and benefits
1. Complies with JEDEC standard JESD7A
2. Complies with JEDEC standard JESD8-1A
3. Input levels:
- For 74HC04: CMOS level
- For 74HCT04: TTL level
4. ESD protection:
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-A exceeds 200 V
5. Multiple package options
6. Specified from -40 °C to +85 °C and from -40 °C to +125 °C
3. Pinning information
4. Functional diagram

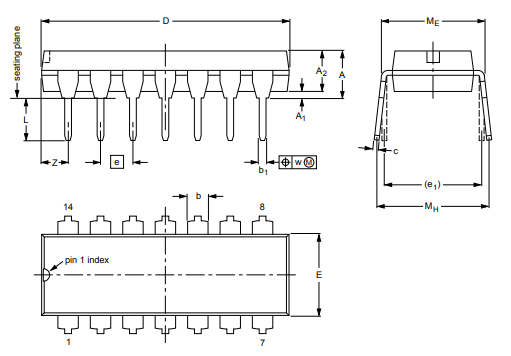

5. Package outline
