• Manufacturer Part# 74LVC1G11GW-Q100H
  • Product CategoryIntegrated Circuits (ICs)
  • Short DescriptionIC GATE AND 1CH 3-INP 6TSSOPAND Gate IC 1 Channel ...
  • More DetailN/A
In Stock: 10000

Can ship immediately

Technical Details

  • Series:74LVC
  • Packaging:Tape & Reel (TR)
  • Part Status:Active
  • Logic Type:AND Gate
  • Number of Circuits:1
  • Number of Inputs:3
  • Features:--
  • Voltage - Supply:1.65 V ~ 5.5 V
  • Current - Quiescent (Max):4µA
  • Current - Output High, Low:32mA, 32mA



  • Logic Level - Low:0.7 V ~ 0.8 V
  • Logic Level - High:1.7 V ~ 2 V
  • Max Propagation Delay @ V, Max CL:3.5ns @ 5V, 50pF
  • Operating Temperature:-40°C ~ 125°C
  • Mounting Type:Surface Mount
  • Supplier Device Package:6-TSSOP
  • Package / Case:6-TSSOP, SC-88, SOT-363
  • Base Part Number:74LVC1G11

Description

1. description

The 74LVC1G11-Q100 provides a single 3-input AND gate.

The input can be driven from either 3.3 V or 5 V devices. This feature allows the use of this device in a mixed 3.3 V and 5 V environment.

Schmitt trigger action at all inputs makes the circuit highly tolerant to slower input rise and fall time.

This device is fully specified for partial power-down applications using IOFF.

The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.

2. Features and benefits

   1. Automotive product qualification in accordance with AEC-Q100 (Grade 1)

   2. Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃

   3. Wide supply voltage range from 1.65 V to 5.5 V

   4. 5 V tolerant inputs for interfacing with 5 V logic

   5. High noise immunity

   6. Complies with JEDEC standard:

        JESD8-7 (1.65 V to 1.95 V)

        JESD8-5 (2.3 V to 2.7 V)

        JESD8-B/JESD36 (2.7 V to 3.6 V)

   7. ±24 mA output drive (VCC = 3.0 V)

   8. ESD protection:

        MIL-STD-883, method 3015 exceeds 2000 V

        HBM JESD22-A114F exceeds 2000 V

   9. MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 )

 10. CMOS low power consumption

 11. Latch-up performance exceeds 250 mA

 12. Direct interface with TTL levels

 13. Multiple package options

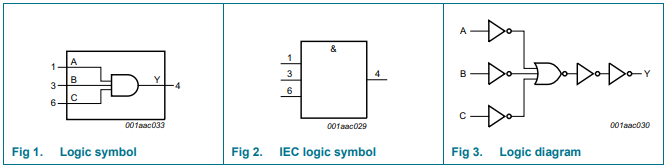

3. Functional diagram

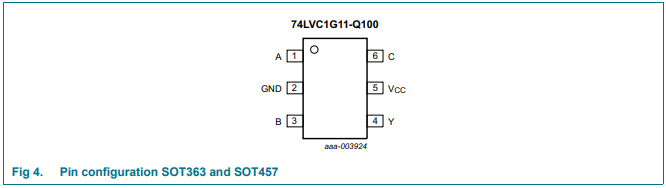

4. Pinning information
