1. Description
The 74LVC1G332GW-Q100H provides one 3-input OR function. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
2. Features and benefits
1. Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
2. Wide supply voltage range from 1.65 V to 5.5 V
3. High noise immunity
4. Complies with JEDEC standard:
- JESD8-7 (1.65 V to 1.95 V)
- JESD8-5 (2.3 V to 2.7 V)
- JESD8B/JESD36 (2.7 V to 3.6 V)
5. ESD protection:
- MIL-STD-883, method 3015 exceeds 2000 V
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω)
6. ±24 mA output drive (VCC = 3.0 V)
7. CMOS low power consumption
8. Latch-up performance exceeds 250 mA
9. Direct interface with TTL levels
10. Inputs accept voltages up to 5 V
11. Multiple package options
3. Pin configuration
4. Pin description

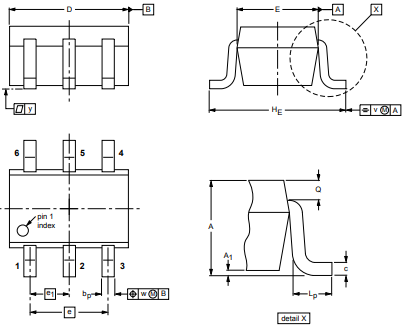

5. Package outline
