1. Describe
74LVC2G32DC-Q100H provides 2-input OR gate function. The input can be driven by a 3.3 V or 5 V device. This feature allows these Converter in a mixed environment of 3.3 V and 5 V. This device is fully suitable for partial power-off applications using IOFF. IOFF The circuit disables the output to prevent damaged return current from passing through the device When it is powered off. This product has passed the Automotive Electronics Council (AEC) standard certification Q100 (level 1), suitable for automotive applications.
2. Features and benefits
1. Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from - 40 °C to +85 °C and from - 40 °C to +125 °C
2. Wide supply voltage range from 1.65 V to 5.5 V
3. 5 V tolerant outputs in the Power-down mode
4. High noise immunity
5. ±24 mA output drive (VCC = 3.0 V)
6. CMOS low power consumption
7. Complies with JEDEC standard:
- JESD8-7 (1.65 V to 1.95 V)
- JESD8-5 (2.3 V to 2.7 V)
- JESD8-B/JESD36 (2.7 V to 3.6 V)
8. Latch-up performance exceeds 250 mA
9. Direct interface with TTL levels
10. Inputs accept voltages up to 5 V
11. ESD protection:
- MIL-STD-883, method 3015 exceeds 2000 V
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω)
3. Pin configuration

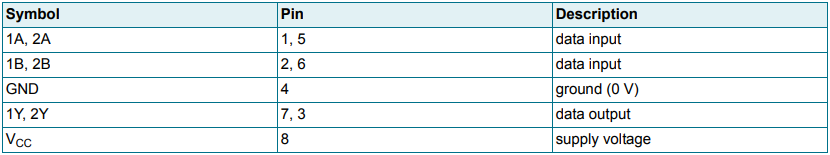

4. Pin description
