1. Features
1. ESD Protection for 4 high-speed I/O channels and VDD
2. Provide ESD protection for each channel to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) (5/50ns) 20A (I/O), 40A (VDD)
- IEC 61000-4-5 (Lightning) 4A (8/20µs)
3. Below 5V operating voltage: 2.5 - 3.3 - 4.2 - 5.0V
4. Ultra Low capacitance: 1pF typical
2. Mechanical Characteristics
1. JEDEC SOT23-6L Package
2. Molding compound flamability rating: UL94V-0
3. Packaging: Tape & Reel
3. Pin Configuration

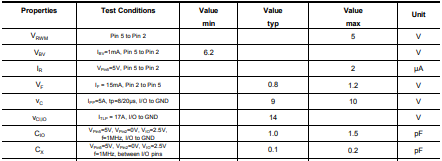

4. Electrical Characterisitcs
5. Dimensions
