ABLS-8.192MHZ-K4T

Abracon LLC
ABLS-8.192MHZ-K4T HongDa Electronics ABLS-8.192MHZ-K4T
  • Manufacturer Part# ABLS-8.192MHZ-K4T
  • Product CategoryCrystals, Oscillators, Resonators
  • Short DescriptionCRYSTAL 8.1920MHZ 18PF SMD8.192MHz ±30ppm Crystal ...
  • More DetailN/A
In Stock: 1000

Can ship immediately

Datasheet:
ABLS-8.192MHZ-K4T Datasheet

Technical Details

  • Series:ABLS
  • Packaging:Tape & Reel (TR)
  • Part Status:Active
  • Type:MHz Crystal
  • Frequency:8.192MHz
  • Frequency Stability:±50ppm
  • Frequency Tolerance:±30ppm
  • Load Capacitance:18pF
  • ESR (Equivalent Series Resistance):80 Ohms



  • Operating Mode:Fundamental
  • Operating Temperature:-40°C ~ 125°C
  • Ratings:--
  • Mounting Type:Surface Mount
  • Package / Case:HC-49/US

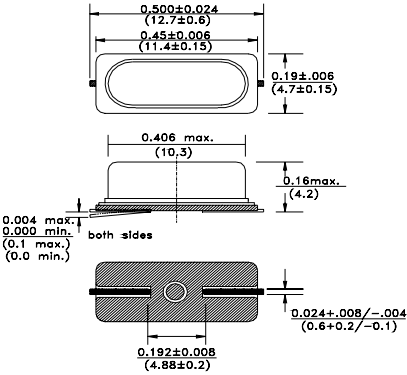

  • Size / Dimension:0.449" L x 0.185" W (11.40mm x 4.70mm)
  • Height - Seated (Max):0.165" (4.20mm)

Description

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com


1. Feature

    1. Suitable for RoHS reflow

    2. Can be used for tight stability and extended temperature range

2. Application

    1. Computers, modems, microprocessors

    2. Wireless application

3. product description
