• Manufacturer Part# ABLS2-25.000MHZ-D4YF-T
  • Product CategoryCrystals, Oscillators, Resonators
  • Short DescriptionCRYSTAL 25.0000MHZ 18PF SMD25MHz ±30ppm Crystal 18...
  • More DetailN/A
In Stock: 2000

Can ship immediately

Technical Details

  • Series:ABLS2
  • Packaging:Tape & Reel (TR)
  • Part Status:Active
  • Type:MHz Crystal
  • Frequency:25MHz
  • Frequency Stability:±30ppm
  • Frequency Tolerance:±30ppm
  • Load Capacitance:18pF
  • ESR (Equivalent Series Resistance):40 Ohms



  • Operating Mode:Fundamental
  • Operating Temperature:-40°C ~ 85°C
  • Ratings:--
  • Mounting Type:Surface Mount
  • Package / Case:HC-49/US
  • Size / Dimension:0.449" L x 0.185" W (11.40mm x 4.70mm)
  • Height - Seated (Max):0.130" (3.30mm)

Description

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com


1. Feature

    1. Suitable for RoHS-compliant reflow soldering

    2. Suitable for thin equipment

    3. Low height reduced to 3.3mm

    4. High stability and extended temperature

2. Application

    1. Computers, modems, microprocessors

    2. Wireless application

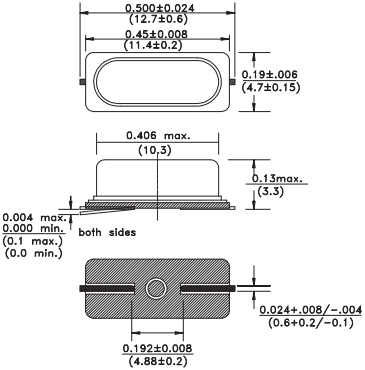

3. Product shape and size
