1. FEATURES
1. AT-cut fundamental or 3rd OT mode
2. Suitable for RoHS reflow profile
3. Tight Stability available ±10
4. Ceramic package hermetically glass sealed assures high precision and reliability.
2. APPLICATIONS
1. Cellular telephones, pagers
2. Communication and test equipment
3. PCMCIA and wireless applications

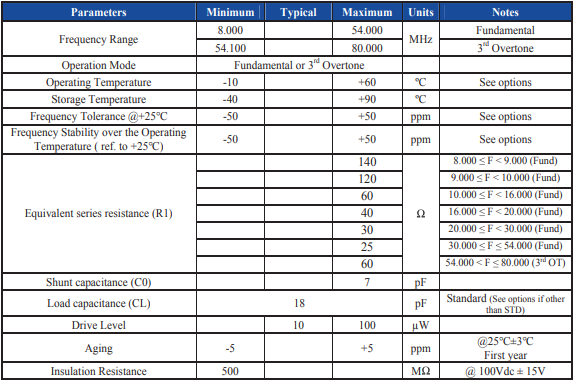

3. STANDARD SPECIFICATIONS

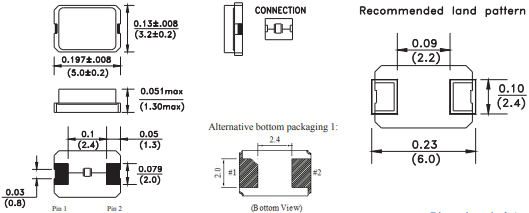

4. OUTLINE DRAWING
