1. Describe
ON Semiconductor’s AMIS-49587 complies with IEC 61334-5-1 Power line carrier modem using extended FSK (S-FSK) modulation Robust low data rate communication via power line. AMIS-49587 Yes Built around the ARM 7TDMI processor core, including MAC Floor. Through this powerful modulation technology, the signal on the power supply The line can pass a long distance. Half-duplex operation is Automatically sync to mains, up to 2400 bits per second. Product configuration is done through its serial interface, it Allow users to focus on application development. AMIS-49587 is mixed in ON Semiconductor Signal technology, combining analog and digital circuits Functions on the same IC.
2. Features
1. Power Line Carrier Modem for 50 and 60 Hz Mains
2. Fully compliant to IEC 61334−5−1 and CENELEC EN 50065−1
3. Complete Handling of Protocol Layers Physical to MAC
4. Programmable Carrier Frequencies from 9 to 95 kHz in 10 Hz Steps
5. Half Duplex
6. Data Rate Selectable: 300 – 600 – 1200 – 2400 baud (@ 50 Hz)
360 – 720 – 1440 – 2880 baud (@ 60 Hz)
7. Synchronization on Mains
8. Repetition Algorithm Boost the Robustness of Communication
9. SCI Port to Application Microcontroller
10. SCI Baudrate Selectable: 4.8 – 9.6 – 19.2 – 34.4 kb
11. Power Supply 3.3 V
12. Ambient Temperature Range: −40°C to +85°C
13. These Devices are Pb−Free and are RoHS Compliant*
3. Applications
1. ARM: Automated Remote Meter Reading (Télérelevé)
2. Remote Security Control
3. Streetlight Control
4. Transmission of Alerts (Fire, Gas Leak, Water Leak)

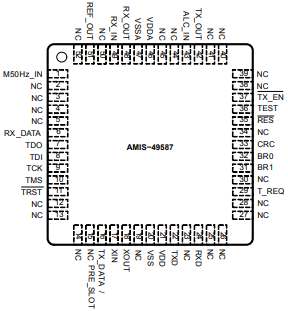

4. Pin configuration

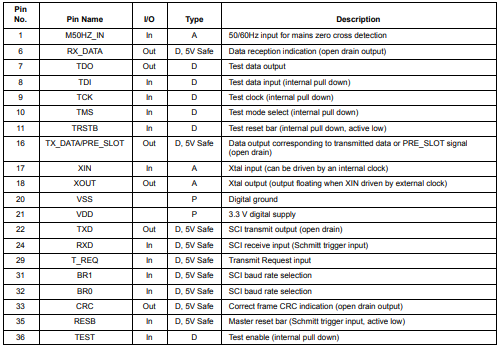

5. Pin description

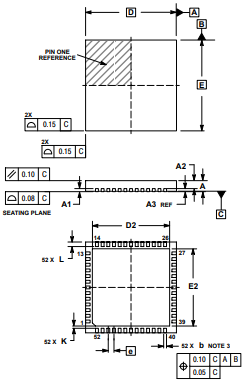

6. Package Size
