Can ship immediately
FEATURES:
1. Ultra-miniature size 3.2x1.5x1.0mm [max.]
2. Low Voltage Operation (Min:1.5V)
3. Low Current Consumption (3.5uA Max @1.5V)
4. Operating temperature : -40 to +85 °C
5. VDD controls the output amplitude
6. Tri-state function RECOMMENDED TEST CIRCUIT STANDARD SPEC
APPLICATIONS:
1. Factory Automation
2. PC Sever
3. W-LAN/GPS Chipset
4. General purpose clock generator for digital systems
5. Clock drivers for Real Time Clocks
6. Timekeeping in network servers and computers
7. Electricity, gas and water metering
8. Portable field communication
9. Mobile phone
10. Clock & Data recovery
11. CCD clock for VTR camera
12. Computers and peripherals
13. Portable MP3 players & games

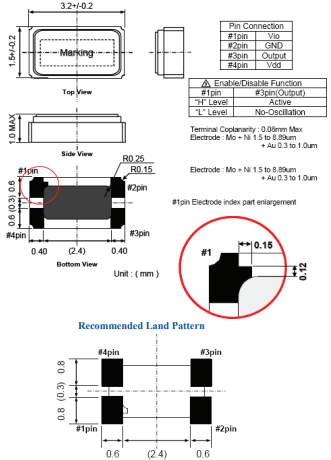

OUTLINE DIMENSIONS
