Description
ATS037B incorporates a high Q quartz resonator in a proven resistance-weld metal package. They are ideal for supporting a wide range of commercial and industrial applications.
Features
1. Standard HC-49/US & HC-49/US-SM Metal Packages
2. Fundamental and 3rd Overtone Crystal Design
3. Frequency Range 3.2 – 64MHz
4. Frequency Tolerance, ±30ppm Standard
5. Frequency Stability, ±50ppm Standard
6. Operating Temperature Range -20°C to +70°C or -40°C to +85°C
7. Tape and Reel Packaging, EIA-418
Applications
1. Wireless Communications
2. Broadband Access
3. FPGA/Microcontrollers
4. Computer Peripherals
5. Microprocessors
6. Test and Measurement
7. Consumer Electronics
8. Portable Equipment

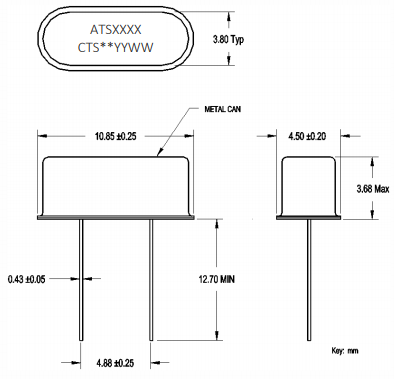

Mechanical Specifications

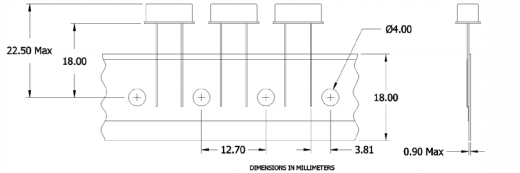

Packaging Information
