1. Features
1. Fast Switching Speed
2. Surface Mount Package Ideally Suited for Automated Insertion
3. For General Purpose Switching Applications
4. High Conductance
5. Totally Lead-Free & Fully RoHS Compliant
6. Halogen and Antimony Free. “Green” Device
7. Qualified to AEC-Q101 Standards for High Reliability
8. PPAP Capable
2. Mechanical Data
1. Case Material: Molded Plastic.
2. UL Flammability Classification Rating 94V-0
3. Moisture Sensitivity: Level 1 per J-STD-020
4. Terminals: Solderable per MIL-STD-202, Method 208
5. Lead Free Plating (Matte Tin Finish Annealed over Alloy 42 Leadframe).
6. Polarity: See Diagram
7. Weight: 0.008 grams (Approximate)

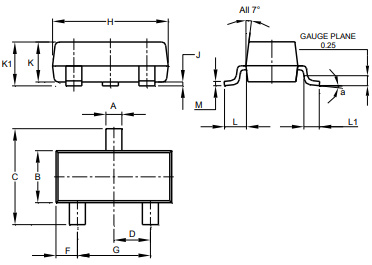

3. Package overview
