1. Description
The MMIC is a one-stage amplifier, offered in a low-cost leadless surface-mount package. It delivers 28 dBm output power at 1 dB gain compression and a superior performance up to 2700 MHz. Its power saving features include simple quiescent current adjustment, which allows class-AB operation and logic-level shutdown control to reduce the supply current to 4 μA.
2. Features and benefits
1. 400 MHz to 2700 MHz frequency operating range
2. 12 dB small signal gain at 2 GHz
3. 28 dBm output power at 1 dB gain compression
4. Integrated active biasing
5. External matching allows broad application optimization of the electrical performance
6. 5 V single supply operation
7. All pins ESD protected
3. Applications
1. Broadband CPE/MoCA
2. Industrial applications
3. WLAN/ISM/RFID
4. E-metering
5. Wireless infrastructure (base station,repeater, backhaul systems)
6. Satellite Master Antenna TV (SMATV)
4. Pin configuration

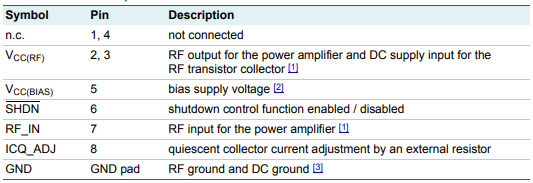

5. Pin description

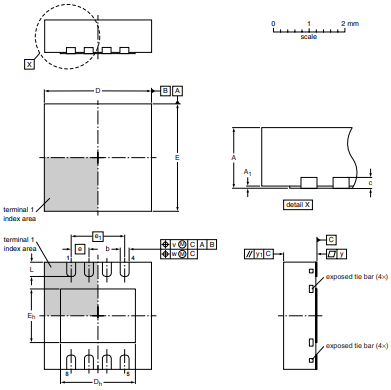

6. Package outline
