BMD-200-B-R RF/IF and RFID

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com

1. Description

Rigado's BMD-200 is a powerful and highly flexible Bluetooth Smart module Based on Nordic Semiconductor's nRF51822 SoC. Use ARM®Cortex™ M0 CPU, embedded 2.4GHz transceiver and module chip antenna BMD-200. BMD-200 makes full use of the on-chip peripherals of nRF51822, and can realize a wide range of applications without an external host. The microcontroller simplifies the design and reduces the BOM cost. With the help of an internal DCDC converter and a power supply voltage range of 1.8V to 3.6V, BMD-200 can Directly powered by button batteries or two AAA batteries, with ultra-low power consumption

2. Features

    1. Based on the Nordic nRF51822 SoC

    2. Complete RF solution with integrated chip antenna

    3. Integrated DC-DC converter

    4. No external components required

    5. ARM® Cortex™-M0 32-bit processor

    6. Serial Wire Debug (SWD)

    7. S100 series SoftDevice ready

    8. Over-the-Air (OTA) firmware updates

    9. 256 kB embedded flash program memory

  10. 32/16 kB RAM

  11. FCC ID: 2AA9B03

  12. IC: 12208A-01

  13. One 32-bit and two 16-bit timers with counter mode

  14. 15 General Purpose I/O Pins

  15. 8/9/10 bit ADC - 8 configurable channels

  16. SPI Master/Slave (4 Mbps/2 Mbps)

  17. Low power comparator

  18. Temperature sensor

  19. Two-wire Master (I2C compatible)

  20. UART (w/ CTS/RTS)

  21. CPU independent Programmable Peripheral Interconnect (PPI)

  22. Quadrature Decoder (QDEC)

  23. AES HW encryption

  24. Real Timer Counter (RTC)

  25. Dimensions: 17x17x2.9mm

3. Applications

    1. Low-Power Sensors

    2. Fitness devices

    3. Wearables

    4. Climate Control

    5. Lighting

    6. Safety and Security

    7. Home Appliances

    8. Access Control

    9. Internet of Things

  10. Home Health Care

  11. Advanced Remote Controls

  12. Smart Energy Management

  13. Low-Power Sensor Networks

  14. Interactive Entertainment

  15. Key Fobs

  16. Environmental Monitoring

  17. Hotel Automation

  18. Office Automation

4. Pin Descriptions – BMD-200

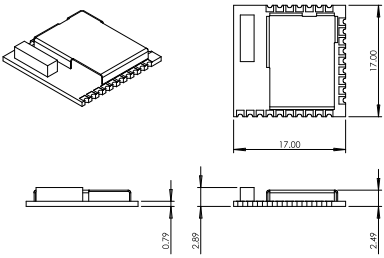

5. Mechanical Data
