1. Describe
The BTS3408G is a dual low-side switch with D-MOS output stage for driving resistive, capacitive and inductive loads. The design is based on Infineon Smart Power Technology (SPT), which allows bipolar, CMOS and power D-MOS devices on the same monolithic circuit. The BTS3408G is protected by embedded protection features and is designed for automotive and industrial applications. It is especially suitable for driving stepper motors and lines.
2. Feature
1. Logic level input
2. Compatible with 3V microcontrollers
3. ESD protection
4. Auto restart thermal shutdown
5. Overload protection
6. Short circuit protection
7. Overvoltage protection
8. Open load detection (during shutdown)
9. Current limit
10. Direct parallel control of inputs
11. Freeze function for multiplexing
12. General fault flags
13. Very low standby quiescent current
14. Switching frequency up to 50kHz
15. Green product (RoHS compliant)
16. AEC Compliant
3. Application
1. Various resistive, inductive and capacitive loads in switching applications
2. µC Compatible Power Switches for 12 V, 24 V and 42 V Applications
3. Replacement of electromechanical relays and discrete circuits
4. Line, stepper motor, lamp and relay drivers

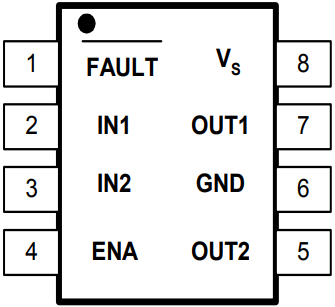

4. Pin configuration

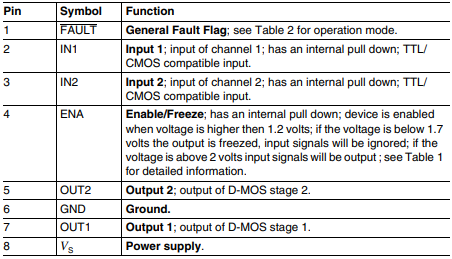

5. Pin Description
