1. Description
N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions
2. Features
1. Overload protection
2. Current limitation
3. Short-circuit protection
4. Thermal shutdown
5. Overvoltage protection (including load dump)
6. Fast demagnetization of inductive loads
7. Reverse battery protection1)
8. Undervoltage and overvoltage shutdown with auto-restart and hysteresis
9. Open drain diagnostic output
10. Open load detection in ON-state
11. CMOS compatible input
12. Loss of ground and loss of Vbb protection
13. Electrostatic discharge (ESD) protection
3. Application
1. µC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads
2. All types of resistive, inductive and capacitive loads
3. Replaces electromechanical relays and discrete circuits
4. Pin configuration

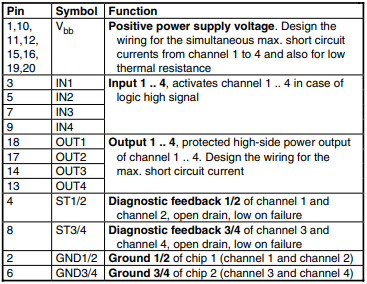

5. Pin Functions
