• Manufacturer Part# BZT55C5V1-GS18
  • Product CategoryDiscrete Semiconductor Products
  • Short DescriptionDIODE ZENER 5.1V 500MW SOD80Zener Diode 5.1V 500mW...
  • More DetailN/A
In Stock: 10000

Can ship immediately

Technical Details

  • Series:Automotive, AEC-Q101
  • Packaging:Tape & Reel (TR)
  • Part Status:Active
  • Voltage - Zener (Nom) (Vz):5.1V
  • Tolerance:±5%
  • Power - Max:500mW
  • Impedance (Max) (Zzt):60 Ohms
  • Current - Reverse Leakage @ Vr:100nA @ 1V



  • Voltage - Forward (Vf) (Max) @ If:1.5V @ 200mA
  • Operating Temperature:-65°C ~ 175°C
  • Mounting Type:Surface Mount
  • Package / Case:SOD-80 Variant
  • Supplier Device Package:SOD-80 QuadroMELF
  • Base Part Number:--

Description

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com


1. FEATURES

    1. Very sharp reverse characteristic

    2. Low reverse current level

    3. Very high stability

    4. Low noise

    5. AEC-Q101 qualified

    6. Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC



2. APPLICATIONS

    1. Voltage stabilization

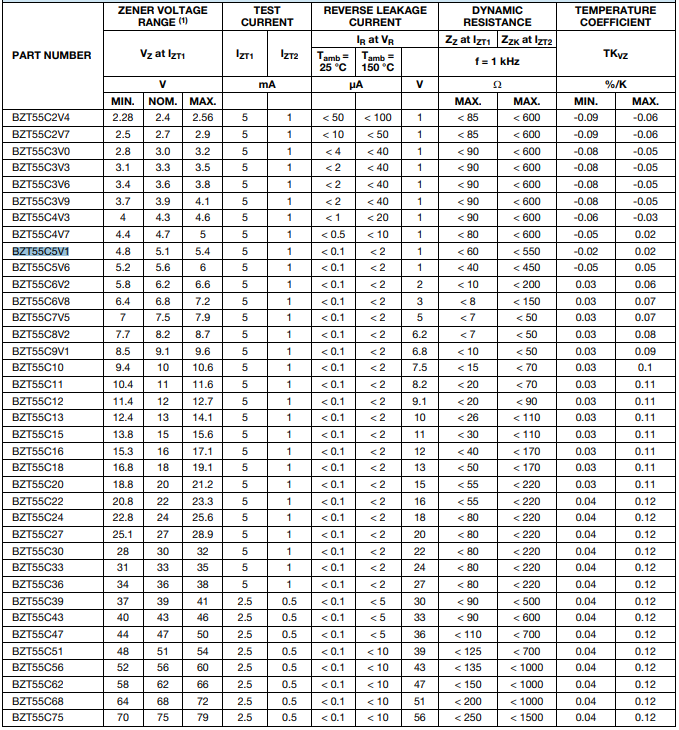

3. ELECTRICAL CHARACTERISTICS

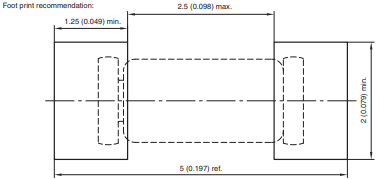

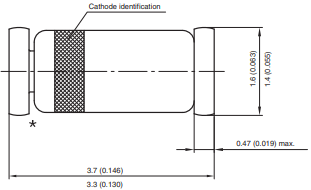

4. PACKAGE DIMENSIONS
