1. Description
Low-power voltage regulator diodes in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ±1 % (BZX84-A), ±2 % (BZX84-B) and approximately ±5 % (BZX84-C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
2. Features
1. Total power dissipation: ≤250 mW
2. Three tolerance series: ±1 %, ±2 % and approximately ±5 %
3. AEC-Q101 qualified
4. Working voltage range: nominal 2.4 V to 75 V (E24 range)
5. Non-repetitive peak reverse power dissipation: ≤40 W
3. Applications
1. General regulation functions

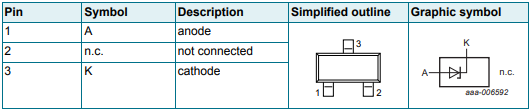

4. product information

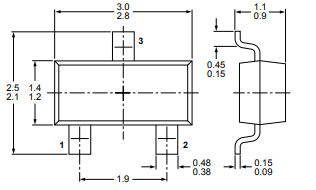

5. Package outline
