1. Describe
This series of Zener diodes provide convenient, surface Install the plastic SOT−23 package. These devices are designed to provide Voltage regulation with minimal space requirements. they are very good Suitable for mobile phones, handheld portable devices and other applications, And high-density PC board.
2. Feature
1. 250 mW rating on FR-4 or FR-5 board
2. Zener breakdown voltage range − 2.4 V to 75 V
3. Packages designed to optimize automated circuit board assembly
4. Small package size suitable for high-density applications
5. Class 3 (> 16 kV) ESD ratings for each human body model
6. Provide close tolerance series (see page 4)
7. SZ prefix, suitable for automobiles and other applications that require uniqueness Site and control change requirements; AEC-Q101 qualified and PPAP capability
8. These devices are lead-free and RoHS compliant
3. Mechanical Characteristics
1. CASE: Void-free, transfer-molded, thermosetting plastic case
2. FINISH: Corrosion resistant finish, easily Solderable
3. MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 Seconds
4. POLARITY: Cathode indicated by polarity band
5. FLAMMABILITY RATING: UL 94 V−0

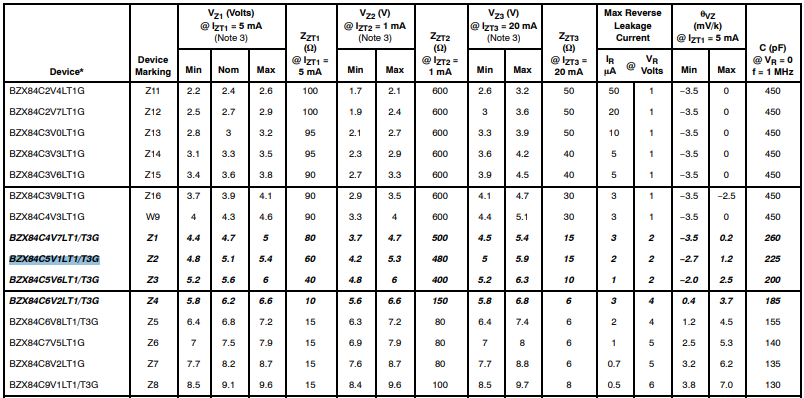

4. ELECTRICAL CHARACTERISTICS

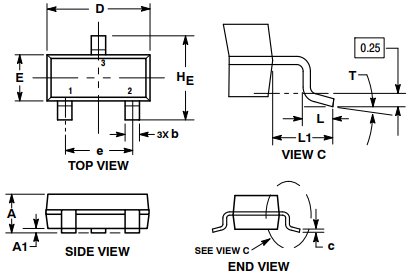

5. Package overview
