Analog Peripherals
1. 10 or 12-bit SAR ADC
- ± 1 LSB INL • Programmable throughput up to 100 ksps
- Up to 8 external inputs; programmable as singleended or differential • Programmable amplifier gain: 16, 8, 4, 2, 1, 0.5
- Data-dependent windowed interrupt generator
- Built-in temperature sensor
2. 8-bit SAR ADC (‘F12x Only)
- Programmable throughput up to 500 ksps • 8 external inputs (single-ended or differential)
- Programmable amplifier gain: 4, 2, 1, 0.5
3. Two 12-bit DACs (‘F12x Only)
- Can synchronize outputs to timers for jitter-free waveform generation
- Two Analog Comparators
- Voltage Reference
- VDD Monitor/Brown-Out Detector
4. On-Chip JTAG Debug & Boundary Scan
- On-chip debug circuitry facilitates full-speed, nonintrusive in-circuit/in-system debugging
- Provides breakpoints, single-stepping, watchpoints,stack monitor; inspect/modify memory and registers
- Superior performance to emulation systems using
5. ICE-chips, target pods, and sockets
- IEEE1149.1 compliant boundary scan
- Complete development kit
6. 100-Pin TQFP or 64-Pin TQFP Packaging
- Temperature Range: –40 to +85 °C
- RoHS Available
7. High Speed 8051 µC Core
- Pipelined instruction architecture; executes 70% of instruction set in 1 or 2 system clocks
- 100 MIPS or 50 MIPS throughput with on-chip PLL
- 2-cycle 16 x 16 MAC engine (C8051F120/1/2/3 and C8051F130/1/2/3 only)
8. Memory
- 8448 bytes internal data RAM (8 k + 256)
- 128 or 64 kB Banked Flash; in-system programmable in 1024-byte sectors
- External 64 kB data memory interface (programmable multiplexed or non-multiplexed modes)
9. Digital Peripherals
- 8 byte-wide port I/O (100TQFP); 5 V tolerant
- 4 Byte-wide port I/O (64TQFP); 5 V tolerant
- Hardware SMBus™ (I2C™ Compatible), SPI™, and
10. two UART serial ports available concurrently
- Programmable 16-bit counter/timer array with 6 capture/compare modules
- 5 general purpose 16-bit counter/timers
- Dedicated watchdog timer; bi-directional reset pin
11. Clock Sources
- Internal precision oscillator: 24.5 MHz
- Flexible PLL technology
- External Oscillator: Crystal, RC, C, or clock
12. Voltage Supples
- Range: 2.7–3.6 V (50 MIPS) 3.0–3.6 V (100 MIPS)
- Power saving sleep and shutdown modes

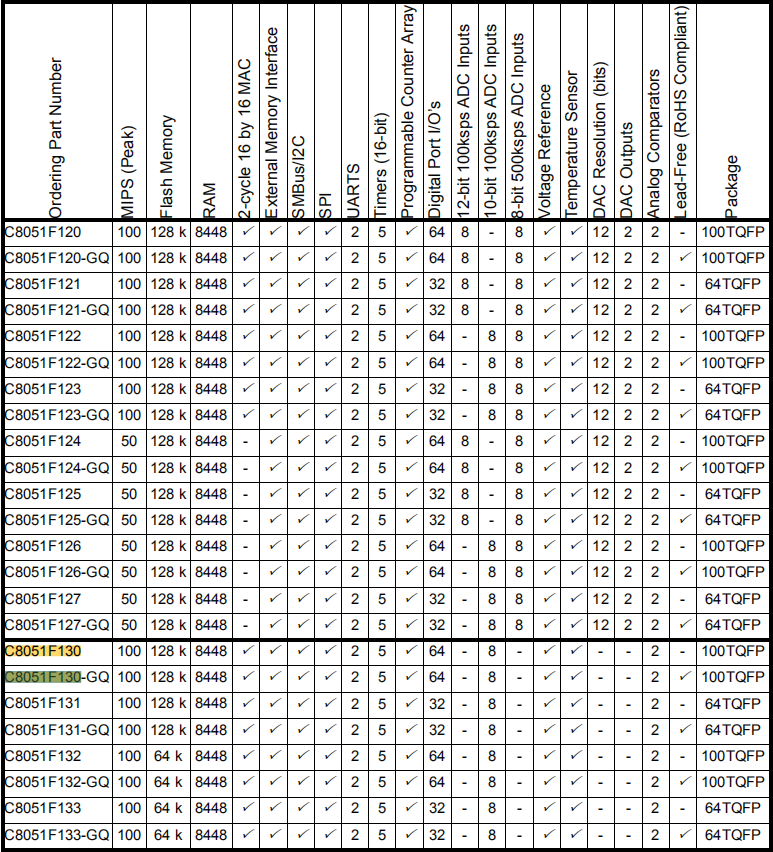

The C8051F120/1/2/3 and C8051F130/1/2/3 devices include a multiply and accumulate engine which can be used to speed up many mathematical operations. MAC0 contains a 16-by-16 bit multiplier and a 40-bit adder, which can perform integer or fractional multiply-accumulate and multiply operations on signed input values in two SYSCLK cycles. A rounding engine provides a rounded 16-bit fractional result after an additional (third) SYSCLK cycle. MAC0 also contains a 1-bit arithmetic shifter that will left or right-shift the contents of the 40-bit accumulator in a single SYSCLK cycle.
