1. Describe
The CDSOT23-T24CAN-Q type device is designed to provide ESD and surge protection for CAN transceivers, conforming to IEC 61000-4-2 (ESD) and IEC 61000-4-5 reverse voltage 24 V and minimum breakdown voltage 26.2 V and It can be used with transceivers with internal circuits to prevent incorrect wiring of the 24 V power supply. The CDSOT23-T24CAN-Q type's low capacitance and low leakage current minimize the impact on signal integrity and are compatible with high-speed CAN. SOT-23 packaged devices will be directly mounted on the industry standard SOT-23 package. Its compact size simplifies the layout of compact PCB designs while ensuring compliance with strict EMI requirements. (Surge) requirements. Dual TVS arrays protect two data lines and provide work
2. Feature
1. Single device for two I/O lines
2. Low capacitance for high-speed CANbus
3. IEC 61000-4-2 30 kV ESD
4. IEC 61000-4-5 (Level 1, CWG 1.2/50) 500 V surge
5. Comply with RoHS*
6. Meet AEC-Q101 **
3. Application
1. High-speed CANbus
2. Industrial Control Network
3. Smart Power Distribution System (SDS)
4. DeviceNet™
5. Factory and process automation system
4. Pin configuration

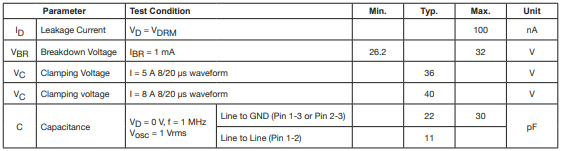

5. Electrical Characteristics
