1. Description
This 25-V, 19-mΩ, 2-mm × 2-mm SON NexFET™ power MOSFET has been designed to minimize losses in power conversion and load management applications. The 2-mm × 2-mm SON package offers excellent thermal performance for the size of the package.
2. Features
1. Ultra-Low Qg and Qgd
2. Low Thermal Resistance
3. Lead-Free Terminal Plating
4. RoHS Compliant
5. Halogen Free
6. SON 2-mm × 2-mm Plastic Package
3. Applications
1. DC-DC Converters
2. Battery and Load Management Applications

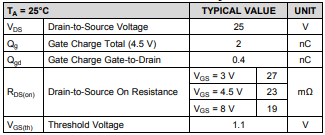

4. Product Summary

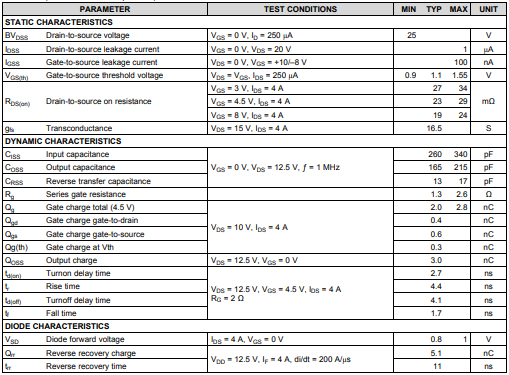

5. Electrical characteristics

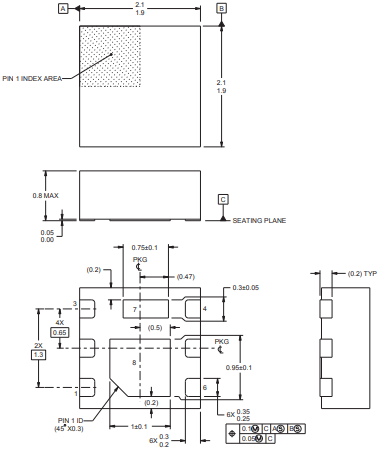

6. Package Dimensions
