1. Features
1. Low On-Resistance
2. Low Gate Threshold Voltage
3. Low Input Capacitance
4. Fast Switching Speed
5. Low Input/Output Leakage
6. ESD Protected Up To 2KV
7. Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
8. Halogen and Antimony Free. “Green” Device (Note 3)
9. Qualified to AEC-Q101 Standards for High Reliability
2. Mechanical Data
1. Case Material: Molded Plastic, “Green” Molding Compound.
- UL Flammability Classification Rating 94V-0
2. Moisture Sensitivity: Level 1 per J-STD-020
3. Terminal Connections: See Diagram Below
4. Terminals: Finish ⎯ Matte Tin annealed over Alloy 42 leadframe.
- Solderable per MIL-STD-202, Method 208
5. Weight: 0.006 grams (approximate)

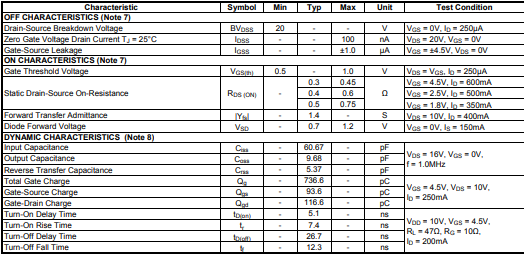

3. Electrical characteristics
4. Package Dimensions
