1. Describe
This MOSFET is designed to minimize on-state resistance (RDS(ON)) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
2. Feature
1. Low on-resistance
2. Low input capacitance
3. Fast switching speed
4. Low input/output leakage
5. Completely lead-free and fully RoHS compliant (Notes 1 and 2)
6. Halogen and antimony free. "Green" device (Note 3)
7. Compliant with AEC-Q101 high reliability standards
3. Application
1. Battery charging
2. Power management features
3. DC-DC converter
4. Portable power adapter
4. Pin configuration

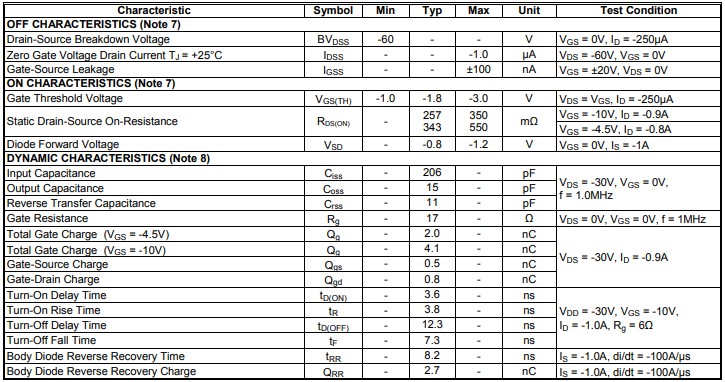

5. Electrical Characteristics

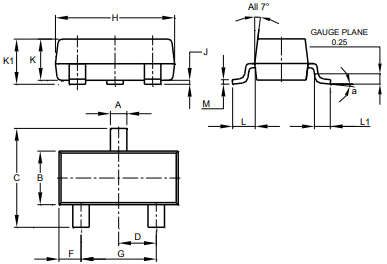

6. Package Outline Dimensions
