Description
The EL827series devices each of consist of an infrared emitting diodes, optically coupled to a phototransistor detector. They are packaged in a 8-pin DIP package and available in wide-lead spacing and SMD option.
Features
1. Current transfer ratio (CTR: 50~600% at IF =5mA, VCE =5V)
2. High isolation voltage between input and output (Viso=5000 V rms )
3. Compact small outline package
4. Pb free and RoHS compliant.
5. UL approved (No. E214129)
6. VDE approved (No. 132249)
7. SEMKO approved
8. NEMKO approved
9. DEMKO approved
10. FIMKO approved
11. CSA approved
12. CQC approved
Applications
1. Programmable controllers
2. System appliances, measuring instruments
3. Telecommunication equipments
4. Home appliances, such as fan heaters, etc.
5. Signal transmission between circuits of different potentials and impedances
Pin configuration

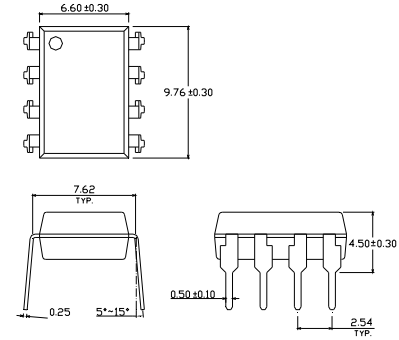

Package Dimension
