1. DESCRIPTION
The EP53F8QI is an Intel® Enpirion® Power System on a Chip (PowerSoC) DC-DC converter. The EP53F8QI provides high efficiency in a very small footprint. Featuring integrated inductor, MOSFET switches, small-signal circuits and compensation in an advanced 3mm x 3mm x 1.1mm 16-pin QFN package. the device delivers up to 1500mA of continuous output current. Total solution footprint can be as little as 40mm2. Output voltage is programmed via an external resistor divider providing a wide range of flexibility while maintaining a very small footprint. Integration of the inductor reduces conducted and radiated noise providing excellent compatibility with sensitive RF and high speed data applications.
2. FEATURES
1. Integrated Inductor Technology
2. Total Solution Footprint as Small as 40 mm2
3. 3 mm x 3 mm x 1.1 mm QFN Package
4. Solution Power Density up to 140mW/mm2
5. 1500 mA Continuous Output Current
6. High Efficiency, up to 94 %
7. Low Ripple Voltage; 8 mVP-P Typical
8. Power OK Signal with 5 mA Sink Capability
9. 4 MHz Fixed Switching Frequency
10. Low Dropout Operation: 100 % Duty Cycle
11. Under Voltage Lockout, Over Current, Short Circuit, and Thermal Protection
12. RoHS Compliant; MSL 3 260 °C Reflow
3. APPLICATIONS
1. Wireless wide area networking data cards.
2. Replacement of inefficient LDOs
3. Noise Sensitive Applications
4. Computing, Computer Peripherals, Storage, Networking, and Instrumentation
5. USB, DSL, STB, DVR, DTV, and iPC

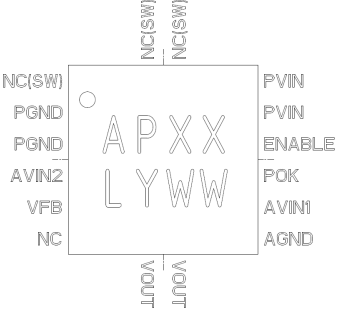

4. Pin configuration

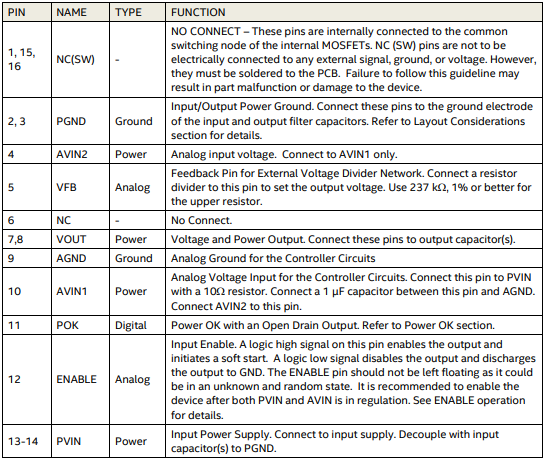

5. PIN DESCRIPTIONS
