1. Feature
1. The suffix "-HF" can be added as required to provide halogen-free
2. Lead-free surface treatment/Rohs compliant
3. Epoxy resin meets UL 94 V-0 flammability rating
4. Moisture sensitivity level 1
5. Easy access
6. High temperature welding: 260°C at the terminal for 10 seconds
7. High efficiency and ultra-fast recovery time
2. Maximum rating
1. Working temperature: -50°C to +150°C
2. Storage temperature: -50°C to +150°C
3. Maximum thermal resistance; 20°C/W junction to lead

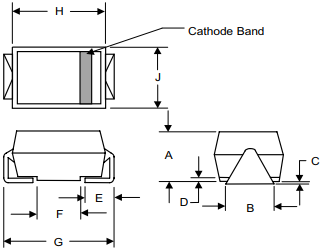

3. Package overview

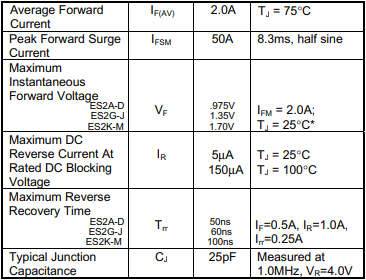

4. Electrical Characteristics
