1. Description
The ESD9L5.0ST5G series is designed to protect voltage sensitive components that require ultra-low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage and fast response time make these devices ideal for ESD protection in designs where board space is at a premium. Due to its low capacitance, it is suitable for high frequency designs such as USB 2.0 high speed and antenna line applications.
2. Feature:
1. Ultra-low capacitance 0.5 pF
2. Low clamping voltage
3. Small form factor: 0.039 inches x 0.024 inches (1.00 mm x 0.60 mm)
4. Low ride height: 0.016 inches (0.4 mm)
5. Isolation voltage: 3.3 V, 5 V
6. Low leakage
7. Response time is usually <1.0 ns
8. IEC61000-4-2 level 4 ESD protection
9. S and SZ prefixes suitable for automotive and other applications The only site and control change requirements; AEC-Q101 Qualified and capable of PPAP
10. These devices are lead-free and RoHS compliant

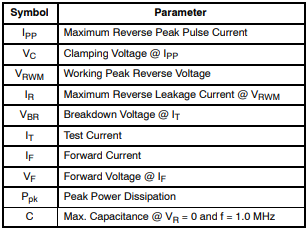

3. ELECTRICAL CHARACTERISTICS

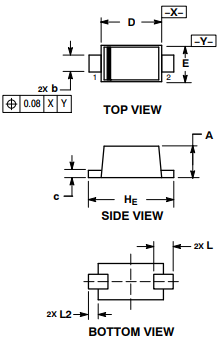

4. PACKAGE DIMENSIONS
