1. The FT245RQ-TRAY is a USB to parallel FIFO interface with the following advanced features:
1. Single chip USB to parallel FIFO bidirectional data transfer interface.
2. Entire USB protocol handled on the chip. No USB specific firmware programming required.
3. Fully integrated 1024 bit EEPROM storing device descriptors and FIFO I/O configuration.
4. Fully integrated USB termination resistors.
5. Fully integrated clock generation with no external crystal required.
6. Data transfer rates up to 1Mbyte / second.
7. 128 byte receive buffer and 256 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
8. FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
9. Unique USB FTDIChip-ID™ feature.
10. Configurable FIFO interface I/O pins.
11. Synchronous and asynchronous bit bang interface options.
12. Device supplied pre-programmed with unique USB serial number.
13. Supports bus powered, self-powered and highpower bus powered USB configurations.
14. Integrated +3.3V level converter for USB I/O.
15. Integrated level converter on FIFO interface for interfacing to external logic running at between +1.8V and +5V.
16. True 5V/3.3V/2.8V/1.8V CMOS drive output and TTL input.
17. Configurable I/O pin output drive strength.
18. Integrated power-on-reset circuit.
19. Fully integrated AVCC supply filtering - no external filtering required.
20. +3.3V (using external oscillator) to +5.25V (using internal oscillator) Single Supply Operation.
21. Low operating and USB suspend current.
22. Low USB bandwidth consumption.
23. UHCI/OHCI/EHCI host controller compatible.
24. USB 2.0 Full Speed compatible.
25. -40°C to 85°C extended operating temperature range.
26. Available in compact Pb-free 28 Pin SSOP and QFN32 packages (both RoHS compliant).

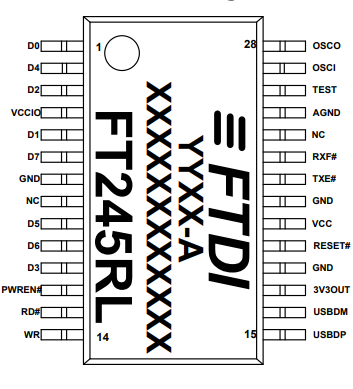

2. Pin description
3. Typical application areas
1. Upgrade old peripheral devices to USB
2. USB data transmission for cellular and cordless phones Cables and interfaces
3. Interface MCU/PLD/FPGA-based designs to USB
4. USB audio and low bandwidth video data Transfer
5. PDA to USB data transfer
6. USB Smart Card Reader
7. USB instrument
8. USB industrial control
9. USB MP3 player interface
10. USB FLASH card reader and writer
11. Set-top box PC-USB interface
12. USB digital camera interface
13. USB hardware modem
14. USB wireless modem
15. USB Barcode Reader
16. USB software and hardware encryption Dongle

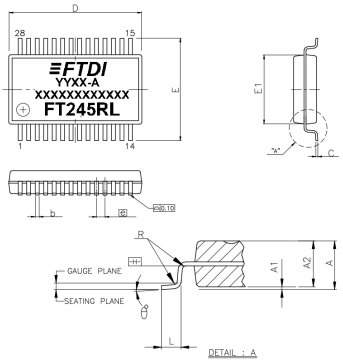

4. Package Dimensions
