HEF4075BP,652

NXP USA Inc
HEF4075BP,652 HongDa Electronics HEF4075BP,652
  • Manufacturer Part# HEF4075BP,652
  • Product CategoryIntegrated Circuits (ICs)
  • Short DescriptionIC GATE OR 3CH 3-INP 14DIPOR Gate IC 3 Channel &nb...
  • More DetailN/A
In Stock: 1000

Can ship immediately

Datasheet:
HEF4075BP,652 Datasheet

Technical Details

  • Series:4000B
  • Packaging:Tube
  • Part Status:Obsolete
  • Logic Type:OR Gate
  • Number of Circuits:3
  • Number of Inputs:3
  • Features:--
  • Voltage - Supply:3 V ~ 15 V
  • Current - Quiescent (Max):4µA
  • Current - Output High, Low:3mA, 3mA



  • Logic Level - Low:1.5 V ~ 4 V
  • Logic Level - High:3.5 V ~ 11 V
  • Max Propagation Delay @ V, Max CL:40ns @ 15V, 50pF
  • Operating Temperature:-40°C ~ 85°C
  • Mounting Type:Through Hole
  • Supplier Device Package:14-DIP
  • Package / Case:14-DIP (0.300", 7.62mm)
  • Base Part Number:4075

Description

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com


1. DESCRIPTION

The HEF4075B provides the positive triple 3-input ORfunction. The outputs are fully buffered for highest noiseimmunity and pattern insensitivity of output impedance

2. Pinning diagram


3. Functional diagram

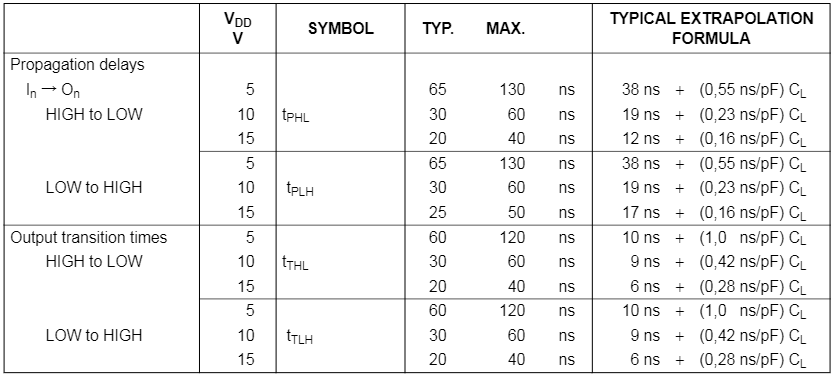

4. AC CHARACTERISTICS
