IXRFD630

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com

1. Description

The IXRFD630 is a CMOS highspeed, high-current gate driver specifically designed to drive MOSFETs in Class D and E HF RF applications as well as other applications requiring ultrafast rise and fall times or short minimum pulse widths. The IXRFD630 can source and sink 30 A of peak current while producing voltage rise and fall times of less than 4 ns and minimum pulse widths of 8 ns. The input of the driver is compatible with TTL or CMOS and is fully immune to latch up over the entire operating range. Designed with small internal delays, cross conduction or current shoot-through is virtually eliminated. The features and wide safety margin in operating voltage and power make the IXRFD630 unmatched in performance and value. The surface mount IXRFD630 is packaged in a lowinductance RF package incorporating advanced layout techniques to minimize stray lead inductances for optimum switching performance.

2. Features

    1. High Peak Output Current

    2. Low Output Impedance

    3. Low Quiescent Supply Current

    4. Low Propagation Delay

    5. High Capacitive Load Drive Capability

    6. Wide Operating Voltage Range

3. Applications

    1. RF MOSFET Driver

    2. Class D and E RF Generators

    3. Multi-MHz Switch Mode Supplies

    4. Pulse Transformer Driver

    5. Pulse Laser Diode Driver

    6. Pulse Generator

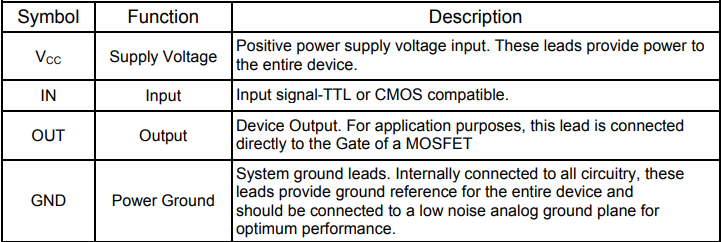

4. Pin Description

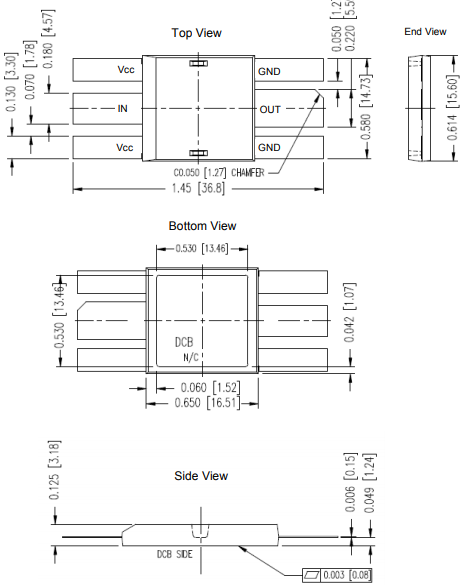

5. Package Diagram
