1. Describe
SIDAC is a silicon bilateral voltage trigger switch. When a voltage exceeding SIDAC conduction is applied Voltage point, SIDAC passes a negative Resistance zone to low on-state voltage. Conduction Continue until the current is interrupted or below The minimum holding current of the device. SIDAC has a glass passivation junction to ensure Rugged and reliable equipment can withstand harsh environment.
2. Feature
1. For AC circuits
2. 79V to 330V trigger voltage
3. RoHS compliant
3. Application
1. High voltage power supply
2. Natural gas
3. Igniter
4. High pressure sodium lamp
5. Xenon flash lamp
6. Ignite.

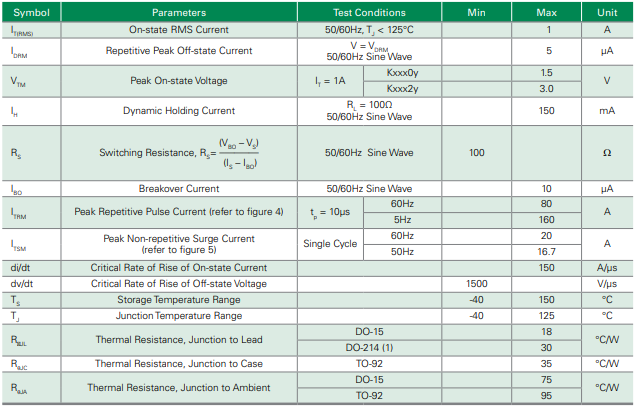

4. Electrical Specifications

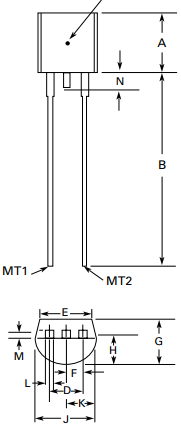

5. Package overview
