1. Description
The LDP01-68AY have been designed to protect automotive sensitive circuits against surges defined in ISO 7637-2 and ISO 16750 tests A and B also called load-dump. The planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide reliability and stability over time. LDP01-68AY is packaged in D²PAK
2. Features
1. Stand-off voltage range: from 22 to 70 V
2. Low leakage current: 1 μA at 25 °C
3. Operating Tj max: 175 °C
4. High power capability at Tj max
5. JEDEC registered package outline
6. ROHS and Halogen free
7. Resin meets UL 94, V0
8. AEC-Q101 compliant
3. Complies with the following standards:
1. IEC 61000-4-2 exceeds level 4
- 30 kV (air discharge)
- 30 kV (contact discharge)
2. ISO10605 – C = 330 pF, R = 330 Ω
- 30 kV (air discharge)
- 30 kV (contact discharge)
3. ISO 7637-2
- Pulse 1: VS = -150 V
- Pulse 2a: VS = +112 V
- Pulse 3a: Vs = -220 V
- Pulse 3b: Vs = +150 V
- Formerly pulses 5a and 5b
4. ISO 16750-2
- Tests A and B

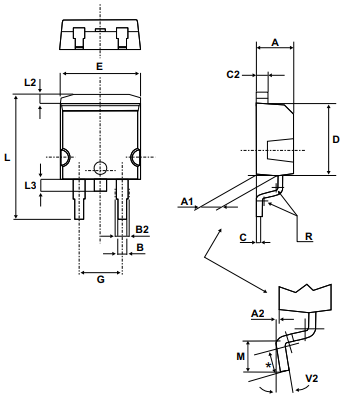

4. Package information

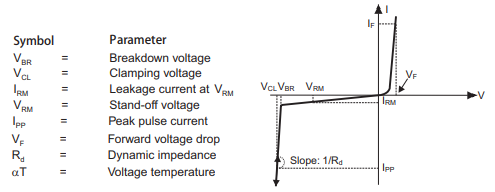

5. Electrical characteristics (definitions)
