1. Description
These circuits consist of two independent, highgain, internally frequency-compensated op amps, specifically designed to operate from a single power supply over a wide range of voltages. The low-power supply drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits, which can now be more easily implemented in single power supply systems. For example, these circuits can be directly supplied with the standard 5 V, which is used in logic systems and will easily provide the required interface electronics with no additional power supply. In linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage.
2. Features
1. Frequency compensation implemented internally
2. Large DC voltage gain: 100 dB
3. Wide bandwidth (unity gain): 1.1 MHz (temperature compensated)
4. Very low supply current per channel essentially independent of supply voltage
5. Low input bias current: 20 nA (temperature compensated)
6. Low input offset voltage: 2 mV
7. Low input offset current: 2 nA
8. Input common-mode voltage range includes negative rails
9. Differential input voltage range equal to the power supply voltage
10. Large output voltage swing 0 V to (VCC ± 1.5 V)
3. Package pin connections
4. Applications
1. Merchant network and server power supply units
2. Multi-function printers
3. Power supplies and mobile chargers
4. Motor control: AC induction, brushed DC,brushless DC, high-voltage, low-voltage,permanent magnet, and stepper motor
5. Desktop PC and motherboard
6. Indoor and outdoor air conditioners
7. Washers, dryers, and refrigerators
8. AC inverters, string inverters, central inverters, and voltage frequency drives
9. Uninterruptible power supplies
10. Programmable logic controllers
11. Electronic point-of-sale systems

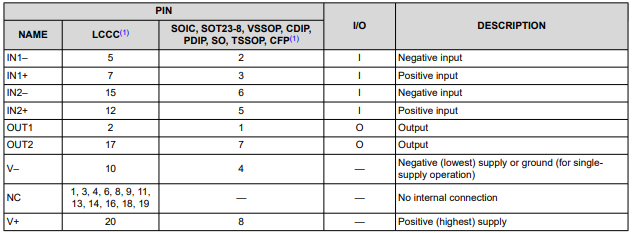

5. Pin Functions

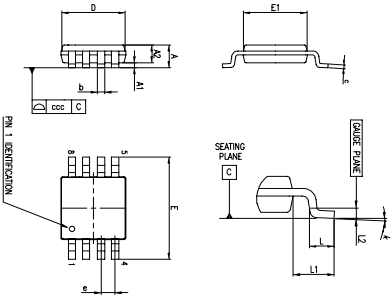

6. package information
