1. Description
The LM8365BALMF27 device is a micropower undervoltage sensing circuit that is ideal for use in battery-powered microprocessor based systems, where extended battery life is a key requirement. Threshold voltages of 2.7 V and 4.5 V are available with an active-low, open-drain output. These devices feature a very-low quiescent current of 0.65 µA typical. The LM8365 features a highly accurate voltage reference, a comparator with precise thresholds and built-in hysteresis to prevent erratic reset operation, a time delayed output which can be programmed by the system designer, and specified Reset operation down to 1 V with extremely-low standby current.
2. Features
1. Extremely-Low Quiescent Current: 0.62 μA at VIN = 2.6 V
2. High Accuracy Threshold Voltage (±2.5%)
3. Open-Drain Output
4. Programmable Output Delay by External Capacitor (130 ms Typical With 0.1 μF)
5. Input Voltage Range: 1 V to 6 V
6. Pin-for-Pin Compatible With MC33465
3. Pin Configuration

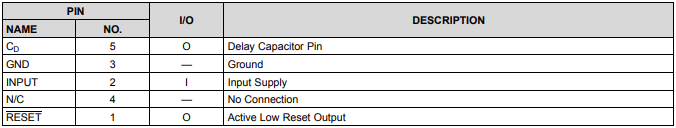

4. Pin Functions

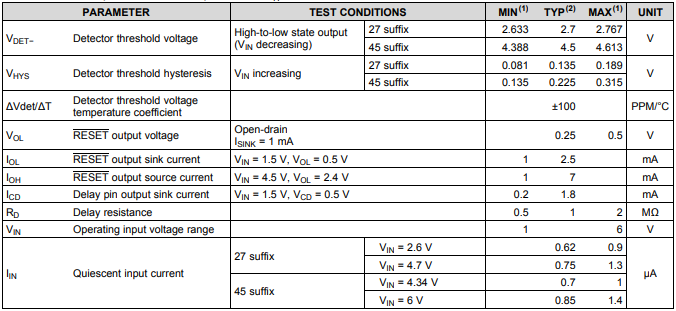

5. Electrical Characteristics
6. Applications
1. Portable Electronics
2. Low-Battery Detection
3. Microprocessor Reset Controllers
4. Power Fail Indicators
5. Battery Backup Detection

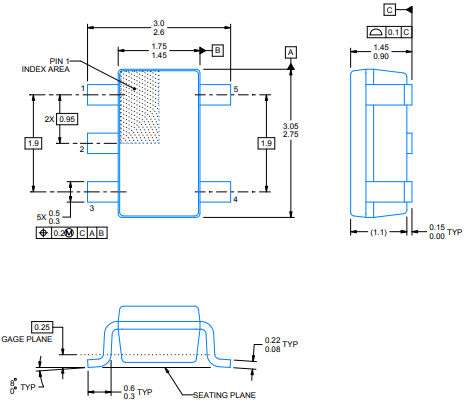

7. Package overview
