1. Description
High voltage dual Schottky rectifier suited for switch mode power supplies and other power converters. This device is intended for use in medium voltage operation, and particularly, in high frequency circuits where low switching losses and low noise are required. MBR10200CT-E1 is available in TO-220-3 (2), TO-220F-3 (Option 1), TO263-2 and TO-252-2 (1) packages.
2. Features
1. Low Forward Voltage: 0.95V @ +25℃
2. High Surge Capacity
3. +150℃ Operating Junction Temperature
4. 10A Total (5A Per Diode Leg)
5. Guard-Ring for Stress Protection
6. Pb-free Package
7. TO-220-3 (2) ,TO-220F-3 (Option 1), TO-252-2 (1) and TO-263-2
8. Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
9. Available in “Green” Packages: TO-220-3 (2) and TO-220F-3 (Option 1), TO-252-2 (1) and TO-263-2
10. Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
11. Halogen and Antimony Free. “Green” Device (Note 3)
3. Applications
1. Power Supply Output Rectification
2. Power Management
3. Instrumentation
4. Pin Assignments

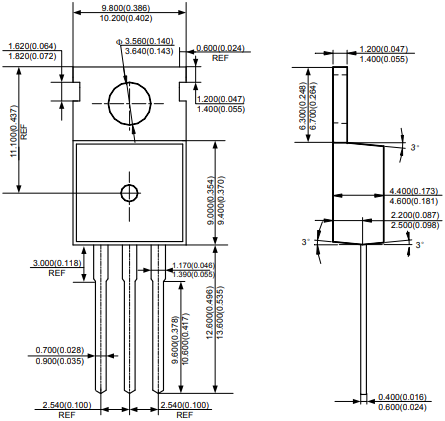

5. Package Outline Dimensions
