1. Description and Applications
This Schottky Barrier Rectifier has been designed to meet the stringent requirements of commercial applications.
1. Polarity Protection Diode
2. Re-Circulating Diode
3. Switching Diode
2. Features and Benefits
1. Guard Ring Die Construction for Transient Protection
2. High Surge Current Capability
3. Low Forward Voltage Drop
4. Lead-Free Finish; RoHS Compliant
5. Halogen and Antimony Free. “Green” Device
3. Mechanical Data
1. Case Material: Molded Plastic, “Green” Molding Compound.
- UL Flammability Classification Rating 94V-0
2. Moisture Sensitivity: Level 1 per J-STD-020
3. Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
- Solderable per MIL-STD-202, Method 208
4. Polarity: See Below
5. Weight: TO252 (DPAK) – 0.317 Grams (Approximate)

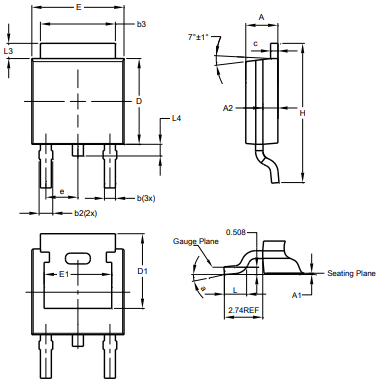

4. Package Outline Dimensions
