description

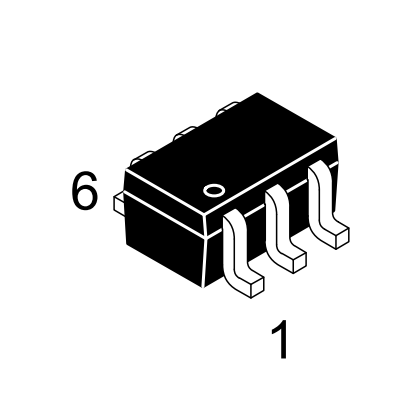

MBT3904DW1 and MBT3904DW2 devices are Our popular SOT-23/SOT-323 three-pin device. Designed for General purpose amplifier application, located in SOT-363 Six-pin surface mount package. By placing two separate devices One package, the device is ideal for low-power surface mount Applications where board space is very valuable.
feature
• hFE, 100−300
• Low VCE (sat), ≤0.4 V
• Simplify circuit design
• Reduce board space
• Reduce the number of components
• Provide 8 mm, 7 inches / 3,000 units tape and reel packaging
•S and NSV prefixes suitable for automotive and other applications The only site and control change requirements; AEC-Q101 Qualified and capable of PPAP
• These devices are lead-free, halogen-free/brominated flame retardant and RoHS compliant Compliance
