1. Description
B series logic gates are composed of P and N channels Enhanced mode equipment in a single overall structure (Complementary MOS). Their main purpose is low power consumption Desire for dissipation and/or high noise immunity.
2. Feature
1. Power supply voltage range = 3.0 Vdc to 18 Vdc
2. All outputs are buffered
3. Able to drive two low-power TTL loads or one low-power TTL load Schottky TTL load within the rated temperature range.
4. Double diode protection on all inputs except the following: three diodes Protection on MC14011BFG and MC14081B
5. Corresponding to the pin-to-pin replacement of the CD4000 series B suffix device
6. NLV prefix suitable for automotive and other applications The only site and control change requirements; AEC-Q100 Qualified and capable of PPAP
7. These devices are lead-free and RoHS compliant
3. Pin description

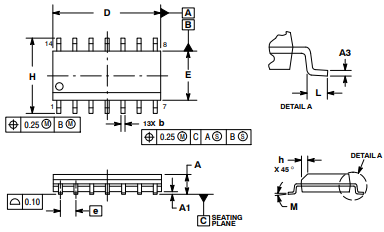

4. MECHANICAL CASE OUTLINE
