1. Universal Serial Bus (USB)
1. Support full-speed USB (12 Mb/s)
2. Realize USB protocol composite device:
- Communication Equipment Class (CDC) for Communication and configuration
- Human Interface Device (HID) for I/O control
3. 128-byte buffer processing data throughput Any UART baud rate:
- 64 byte transmission
- 64 byte reception
4. Fully configurable VID and PID assignment and String descriptor
5. Bus-powered or self-powered
6. Compliant with USB 2.0: TID 40001150
2. USB driver and software support
1. Use standard Windows® Driver Port (VCP) for Virtual Com: Windows XP (SP2 or higher), Windows Vista, Windows 7, Windows 8, Windows 8.1 and Windows 10
2. Configuration utility for initial configuration
3. Universal asynchronous receiver/transmitter (serial port)
1. Respond to the SET_LINE_CODING command to dynamically change the baud rate
2. Support baud rate: 300-1000k
3. Hardware flow control
4. UART signal polarity option
4. General-purpose input/output (GPIO) pins
1. 8 general-purpose I/O pins
5. Electrically erasable programmable read-only memory
1. 256 bytes of user EEPROM
6. Other configuration
1. USB activity LED output (TxLED and RxLED)
2. SSPND output pin
3. USBCFG output pin (indicating when the enumeration is complete)
4. Working voltage: 3.0V-5.5V
5. Oscillator input: 12 MHz
6. Electrostatic discharge (ESD) protection: >4 kV Human Body Model (HBM)
7. Industrial (I) operating temperature: –40°C to +85°C
8. Passed automotive AEC-Q100 reliability test
7. Function Description
MCP2200-I/SS is a USB to UART serial converter, which can realize USB connection UART interface in applications with the following functions. The device reduces external components by integrating USB termination resistors. The MCP2200 also has 256 bytes of integrated user read-only memory. MCP2200 has 8 general-purpose input/output pins. These four pins have alternate functions to indicate USB and communication status.

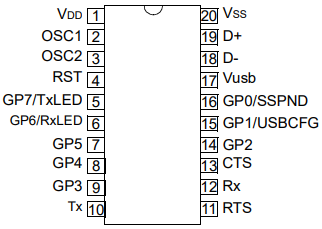

8. Pin configuration

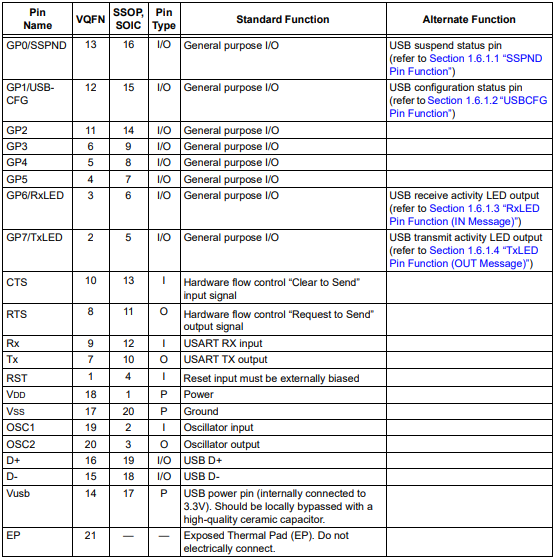

9. Pin description
