1. Describe
This series of Zener diodes is packaged in a SOD−323 surface mount package that has a power dissipation of 300 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand−held portables, and high density PC boards.
2. Features
1. Standard Zener Breakdown Voltage Range − 3.3 V to 36 V
2. Steady State Power Rating of 300 mW
3. Small Body Outline Dimensions:
− 0.067″ x 0.049″ (1.7 mm x 1.25 mm)
4. Low Body Height: 0.035″ (0.9 mm)
5. Package Weight: 4.507 mg/unit
6. ESD Rating of Class 3 (> 16 kV) per Human Body Model
7. Tight Tolerance VZ
8. SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
9. These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant*
3. Mechanical Characteristics
1. CASE: Void-free, transfer-molded plastic
2. FINISH: All external surfaces are corrosion resistant
3. MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 Seconds
4. LEADS: Plated with Pb−Sn or Sn only (Pb−Free)
5. POLARITY: Cathode indicated by polarity band
6. FLAMMABILITY RATING: UL 94 V−0
7. MOUNTING POSITION: Any
4. ELECTRICAL CHARACTERISTICS

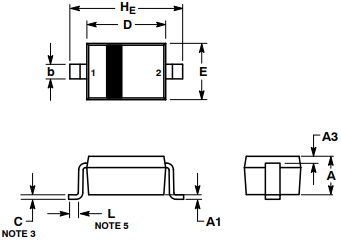

5. PACKAGE DIMENSIONS
