• Manufacturer Part# MMBFJ177LT1G
  • Product CategoryDiscrete Semiconductor Products
  • Short DescriptionJFET P-CH 30V 0.225W SOT23JFET P-Channel 30V  ...
  • More DetailN/A
In Stock: 1000

Can ship immediately

Technical Details

  • Series:MMBFJ177LT1G
  • Packaging:Tape & Reel (TR)
  • Part Status:Active
  • Diode Type:--
  • FET Type:P-Channel
  • Voltage - DC Reverse (Vr) (Max):--
  • Voltage - Breakdown (V(BR)GSS):30V
  • Current - Average Rectified (Io):--
  • Drain to Source Voltage (Vdss):--
  • Voltage - Forward (Vf) (Max) @ If:--
  • Speed:--
  • Current Drain (Id) - Max:--
  • Current - Drain (Idss) @ Vds (Vgs=0):1.5mA @ 15V



  • Voltage - Cutoff (VGS off) @ Id:800mV @ 10nA
  • Current - Reverse Leakage @ Vr:--
  • Input Capacitance (Ciss) (Max) @ Vds:11pF @ 10V (VGS)
  • Capacitance @ Vr, F:--
  • Resistance - RDS(On):300 Ohms
  • Power - Max:225mW
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Operating Temperature - Junction:--
  • Package / Case:TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package:SOT-23-3 (TO-236)
  • Base Part Number:MBFJ177

Description

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com


1. Features

    1. S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

    2. These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

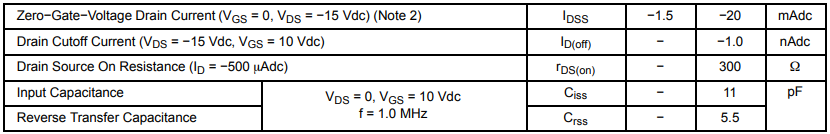

2. Characteristic

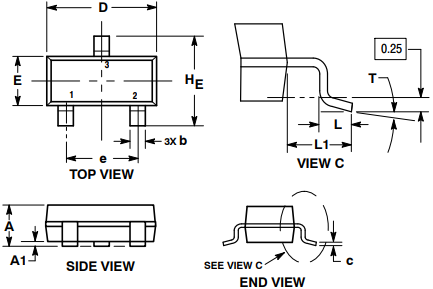

3. Package dimensions
