1. DESCRIPTION
The MP6516GF-Z is an H-bridge motor driver that operates from a supply voltage up to 35V and delivers a motor current up to 2.8A. Typically, the MP6516 is used to drive a DC brush motor. For the MP6516, control of each half-bridge is independent, using IN1, IEN1, IN2, and EN2 pins. An internal current-sensing circuit provides an output voltage proportional to the load current. The MP6516GF-Z also has cycle-by-cycle current regulation and limiting. These features do not require the use of a low-ohm shunt resistor. Full protection features include over-current protection (OCP), input over-voltage protection (OVP), under-voltage lockout (UVLO), and thermal shutdown. The MP6516GF-Z is available in a 16-pin TSSOP-EP (5.0mmx6.4mm) with an exposed thermal pad.
2. FEATURES
1. Wide 5.4V to 35V Input Voltage Range
2. 2.8A Peak Output Current
3. ½-H control, input logic (INx, ENx)
4. Internal Full H-Bridge Driver
5. Cycle-by-cycle Current Regulation / Limit
6. Low On Resistance (HS:250mΩ, LS:250mΩ)
7. Simple, Versatile Logic Interfaces
8. 3.3V and 5V Compatible Logic Supply
9. Over-Current Protection (OCP)
10. Over-Voltage Protection (OVP)
11. Thermal Shutdown
12. Under-Voltage Lockout (UVLO)
13. Fault Indication Output
14. Available in a Thermally Enhanced SurfaceMounted TSSOP-16 EP Package
3. APPLICATIONS
1. Solenoid Drivers
2. DC Brush Motor Drivers

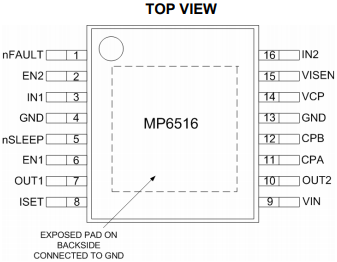

4. PACKAGE REFERENCE

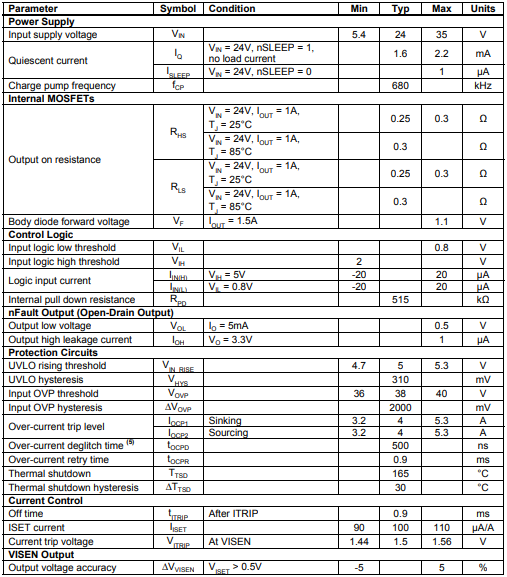

5. ELECTRICAL CHARACTERISTICS

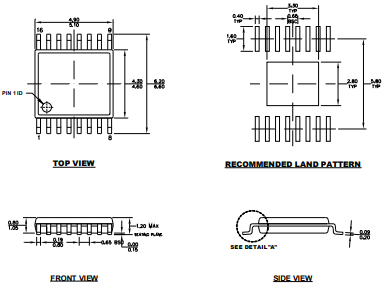

6. PACKAGE INFORMATION
