1. Features
1. Small Compact Surface Mountable Package with J−Bend Leads
2. Rectangular Package for Automated Handling
3. High Temperature Glass Passivated Junction
4. Low Forward Voltage Drop (0.77 V Max @ 2.0 A, TJ = 150°C)
5. Low Forward Voltage Drop (0.71 V Max @ 1.0 A, TJ = 150°C)
6. NRVUA and SURA8 Prefixes for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable*
7. These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
2. Describe
Very suitable for high-voltage, high-frequency rectification, or as Freewheeling and protection diodes in surface mount applications Compact size and weight are critical to the system.

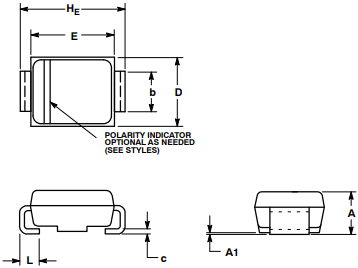

3. Package dimensions
4. Mechanical Characteristics
1. Case: Epoxy, Molded
2. Weight: 70 mg (Approximately)
3. Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
4. Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
5. Polarity: Polarity Band Indicates Cathode Lead
6. ESD Protection:
- Human Body Model > 4000 V (Class 3)
- Machine Model > 400 V (Class C)

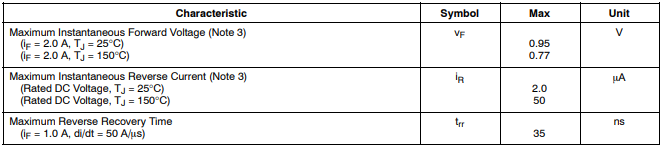

5. Electrical characteristics
