1. Features
1. Pb−Free Package*
2. Small Compact Surface Mountable Package with J−Bend Leads
3. Rectangular Package for Automated Handling
4. High Temperature Glass Passivated Junction
5. Low Forward Voltage Drop (1.20 Volts Max @ 2.0 A, TJ = 150°C)
6. AEC−Q101 Qualified and PPAP Capable
7. SURS8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
2. Describe
Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes in surface mount applications where compact size and weight are critical to the system.
3. product description

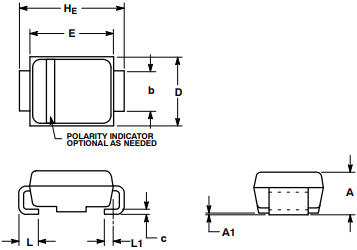

4. Mechanical Characteristics
1. Case: Epoxy, Molded
2. Weight: 95 mg (approximately)
3. Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
4. Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
5. Polarity: Polarity Band Indicates Cathode Lead
6. ESD Ratings:
- Machine Model = C (> 400 V)
- Human Body Model = 3B (> 8 kV)
