1. Description
The NC7SZ08M5X is a single two−input AND gate from ON Semiconductor’s Ultra−High Speed (UHS) series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra−high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC operating range. The inputs and output are high impedance when VCC is 0 V. Inputs tolerate voltages up to 5.5 V, independent of VCC operating voltage.
2. Features
1. Ultra−High Speed: tPD = 2.7 ns (Typical) into 50 pF at 5 V VCC
2. High Output Drive: ±24 mA at 3 V VCC
3. Broad VCC Operating Range: 1.65 V to 5.5 V
4. Matches Performance of LCX Operated at 3.3 V VCC
5. Power Down High Impedance Inputs / Outputs
6. Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
7. Proprietary Noise / EMI Reduction Circuitry
8. Ultra−Small MicroPak™ Packages
9. Space−Saving SC−74A and SC−88A Packages
10. These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
3. Pin Configurations
4. Pin definition

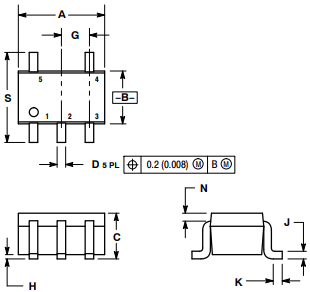

5. Package dimensions
