1. Describe
Complementary power transistors for universal power supplies Amplification and switching, such as output or driver stage Applications such as switching regulators, converters, and power supplies Amplifier.
2. Feature
1. Low collector-emitter saturation voltage − VCE(sat) = 1.0 V (maximum) @ 8.0 A
2. Fast switching speed
3. Complementary pairs simplify design
4. Epoxy resin meets UL 94 V−0 @ 0.125 in
5. ESD rating: human body model, 3B> 8000 V machine model, C> 400 V
6. NJV prefix, suitable for automotive and other applications that require unique site and control change requirements; AEC-Q101 qualification and PPAP capability
7. Provide lead-free packaging

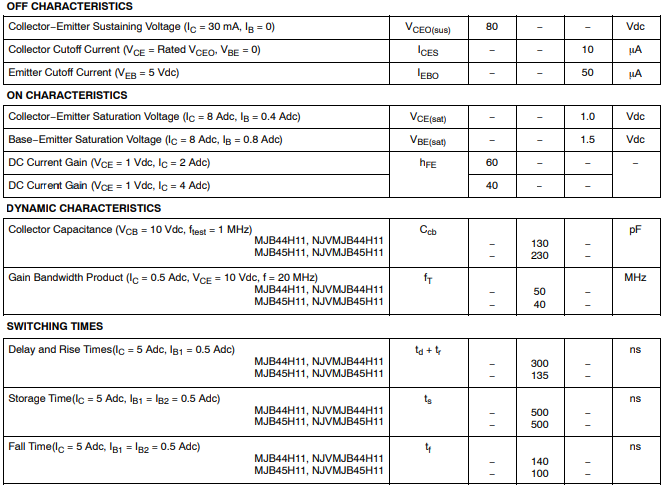

3. Electrical characteristics

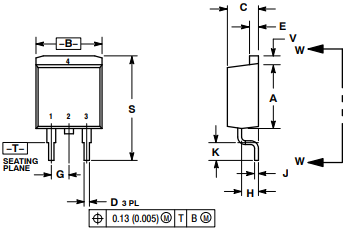

4. Package dimensions
