NTF6P02T3G

ON Semiconductor
NTF6P02T3G HongDa Electronics NTF6P02T3G
  • Manufacturer Part# NTF6P02T3G
  • Product CategoryDiscrete Semiconductor Products
  • Short DescriptionMOSFET P-CH 20V 10A SOT223P-Channel 20V 10A (Ta) 8...
  • More DetailN/A
In Stock: 8000

Can ship immediately

Datasheet:
NTF6P02T3G Datasheet

Technical Details

  • Series:Automotive, AEC-Q101
  • Packaging:Tape & Reel (TR)
  • Part Status:Active
  • FET Type:P-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):20V
  • Current - Continuous Drain (Id) @ 25°C:10A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
  • Rds On (Max) @ Id, Vgs:50 mOhm @ 6A, 4.5V
  • Vgs(th) (Max) @ Id:1V @ 250µA
  • Power - Max:--



  • Gate Charge (Qg) (Max) @ Vgs:20nC @ 4.5V
  • Vgs (Max):±8V
  • Input Capacitance (Ciss) (Max) @ Vds:1200pF @ 16V
  • FET Feature:--
  • Power Dissipation (Max):8.3W (Ta)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:SOT-223
  • Package / Case:TO-261-4, TO-261AA
  • Base Part Number:NTF6P02

Description

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com


1. Feature

    1. Low RDS(on)

    2. Logic level gate drive

    3. The diode exhibits high speed, soft recovery

    4. Specify avalanche energy

    5. NVF prefix, suitable for automotive and other needs Unique site and control change requirements; AEC-Q101 Qualified and have PPAP capability*

    6. These devices are lead-free and RoHS compliant

2. Application

    1. Power management for portable and battery-powered products, Namely: mobile phones and cordless phones and PCMCIA cards

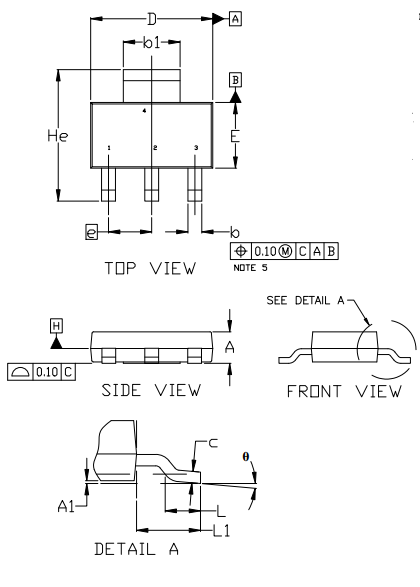

3. Package overview
