1. High-Performance RISC CPU
1. Operating Speed:
- DC – 20 MHz oscillator/clock input
- DC – 200 ns instruction cycle
2. Interrupt Capability
3. 8-Level Deep Hardware Stack
4. Direct, Indirect, and Relative Addressing modes
2. Special Microcontroller Features:
1. Internal and External Oscillator Options
- Precision Internal 4 MHz oscillator factory calibrated to ±1%
- External Oscillator support for crystals and resonators
- 5 s wake-up from Sleep, 3.0V, typical
2. Power-Saving Sleep mode
3. Wide Operating Voltage Range – 2.0V to 5.5V
4. Industrial and Extended Temperature Range
5. Low-Power Power-on Reset (POR)
6. Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
7. Brown-out Detect (BOD)
8. Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation
9. Multiplexed MCLR/Input Pin
10. Interrupt-on-Pin Change
11. Individual Programmable Weak Pull-ups
12. Programmable Code Protection
13. High Endurance Flash/EEPROM Cell
- 100,000 write Flash endurance
- 1,000,000 write EEPROM endurance
- Flash/Data EEPROM Retention: > 40 years
3. Low-Power Features:
1. Standby Current:
- 1 nA @ 2.0V, typical
2. Operating Current:
- 8.5 A @ 32 kHz, 2.0V, typical
- 100 A @ 1 MHz, 2.0V, typical
3. Watchdog Timer Current:
- 300 nA @ 2.0V, typical
4. Timer1 Oscillator Current:
- 4 A @ 32 kHz, 2.0V, typical
4. Peripheral Features:
1. 6 I/O Pins with Individual Direction Control
2. High Current Sink/Source for Direct LED Drive
3. Analog Comparator module with:
- One analog comparator
- Programmable on-chip comparator voltage reference (CVREF) module
- Programmable input multiplexing from device inputs
- Comparator output is externally accessible
4. Analog-to-Digital Converter module (PIC12F675):
- 10-bit resolution
- Programmable 4-channel input
- Voltage reference input
5. Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler
6. Enhanced Timer1:
- 16-bit timer/counter with prescaler
- External Gate Input mode
- Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator, if INTOSC mode selected
7. In-Circuit Serial ProgrammingTM (ICSPTM) via two pins

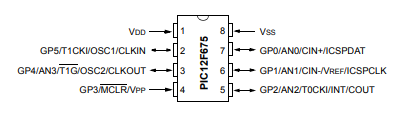

5. Pin Diagrams

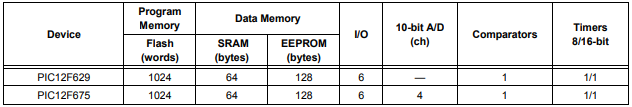

6. Pin description
