1. Description
The processor module of MPLAB®ICE2000 is Interchangeable personality modules, allowing MPLAB ICE 2000 will be reconfigured for simulation Different PICÆ microcontrollers (MCU). This modularity allows simulation of many different devices Added processor module and device adapter, Provides a very cost-effective multi-processor Simulation System. The device adapter of MPLAB ICE 2000 is an interchangeable component, allowing the emulator system Connect to the target application system. equipment The adapter also has control logic that allows the target An application that provides a clock source and power supply for the clock Processor module. Device adapter supports PIC MCU in DIP, SDIP and PLCC software packages. Conversion socket, used with device adapter, Provide a way to accommodate all PIC MCUs Software packages, including SOIC, SSOP, PQFP and TQFP package.
2. Feature
1. Precision internal oscillator:
- It has been calibrated to ±1% (typical value) at the factory
- Software selectable frequency range 8 MHz to 125 kHz
- Software adjustable
- Two-speed start mode
- Crystal failure detection for critical applications
- Switch clock mode during operation Power saving
2. Power saving sleep mode
3. Wide operating voltage range (2.0V-5.5V)
4. Industrial and extended temperature range
5. Power-on reset (POR)
6. Power-on delay timer (PWRT) and oscillator start-up Timer (OST)
7. Under-voltage reset (BOR) with software control Options
8. Enhanced low-current watchdog timer (WDT) With on-chip oscillator (software selectable, nominal value is 268 seconds, with complete prescaler), with software Enable
9. Multiplexed master clear with pull-up/input pin
10. Programmable code protection
11. High endurance flash/EEPROM unit:
- 100,000 write Flash endurance
- 1,000,000 EEPROM write life
- Flash memory/data EEPROM retention time:> 40 years

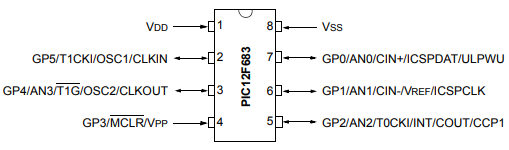

3. Pin configuration
